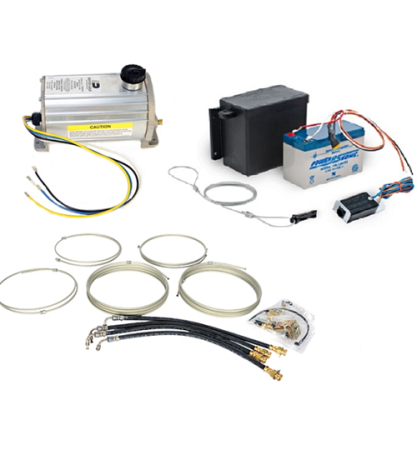

Dexter Drum Brake Elec/Hyd Actuator, Line and Breakaway Kit

This is a Dexter Drum Brake Electric/Hydraulic Actuator with Line and Breakaway Kit.

This Dexter Electric/Hydraulic Brake Actuator for Drum Brake Applications features 1,000 psi which is suitable for drum brake applications only. This system has a large reservoir capacity, and Solid-state electronics. This system requires a 4-wire hookup.

• Dimensions: 11" long x 6" wide x 7" tall.
• Compatible with most electronic brake controllers.
• Meets or exceeds all DOT regulations and federal braking requirements.
•Works with Ford and Dodge factory brake controllers. This is not compatible with Chevrolet factory brake controllers.
• 2 Year limited warranty.
• Includes box, battery, breakaway switch, and built in charger

• Tandem axle kit
• 3 - 3/16" Service Tees
• 1 - 3/16" Hydraulic Union
• 4 - Hose Brackets
• 4 - Hose Clips
• 2 - Line Tie Straps
• 6 - Line Retaining Clips
• 6 - Line Retaining Clip Screws
• 2 - 3/16" x 180" Steel Lines
• 4 - 90 Degree Flex Hoses
• 2 - 3/16" x 51" Steel Lines
• 1 - 3/16" x 72" Steel Line
