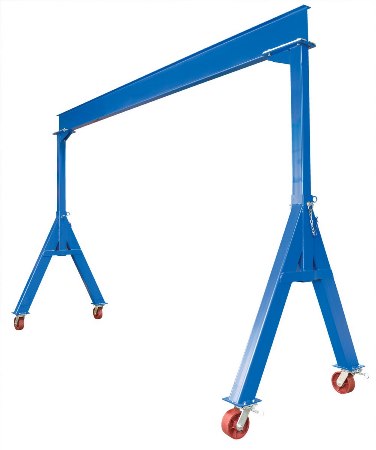

Fixed Height Steel Gantry Crane, 10k, 15'W x 10'H

The price shown does not include shipping. Please Contact us prior to ordering for a total inclusive price including shipping via freight to your location.

This Fixed Height Steel Gantry Crane is designed for transporting and positioning materials along the beam’s length. The solid steel construction provides years of service, while the painted blue finish protects from wear. The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. This gantry crane is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

• Heavy-duty welded steel construction for long life.
• Includes 4 swivel nylon casters with 4-way position locks for precise positioning.
• Complies with applicable OSHA 29 CFR 1910.179, ASME B30.17, ANSI Z535.4 specifications.
• Quick setup design.
• Painted blue finish
• Warranty included.

Product Specifics:

• Top beam width is 15’ft.
• Measures 10ft High.
• Base width is 64-1/4".
• Weight capacity is 10,000 pounds.
• Weighs 915 pounds.

Free Shipping exempt due to shipping size and weight.
